CUSTOM HYDRAULIC POWER UNITS

CUSTOM HYDRAULIC POWER UNITS BUILT TO PERFECTION

You cannot afford to wait for delivery or use substandard components. Mi Fluid Power Solutions hydraulic power units are available in one to ten business days to ensure your hydraulic components receive the power they need when they need them.

Mi Fluid Power Solutions hydraulic power units feature pumps from our top brands, valves and filters, as well as Trans-Power motors, and ensure years of trouble-free operation.

Applications

Custom Fluid Power Systems
Custom Manifold Build
Engineer Services
Fluid Analysis Program
Hydraulic Power Unit
Hydraulic & Pneumatic NFPA Cylinder Build

Markets

Aggregate, Cement & Mining
Beverage/Bottling
Food Processing
Petrochemical Processing
Power Generation
Pulp & Paper
Steel & Aluminum
Waste Management
Wastewater Treatment

Features

Check Valve
Heat Exchanger
JIC Design
Manifold with Relief Valve
P/C Piston Pump
Premium Efficiency Motor
Return Filter Assembly

Benefits

Pump Protection
Maintain Proper Oil Temp.
Ease of Maintenance
System Flexibility
Adjustable Pressure and Flow
Reduced Energy Consumption
Maintain Proper Oil Cleanliness

INNOVATIVE PROBLEM SOLVING

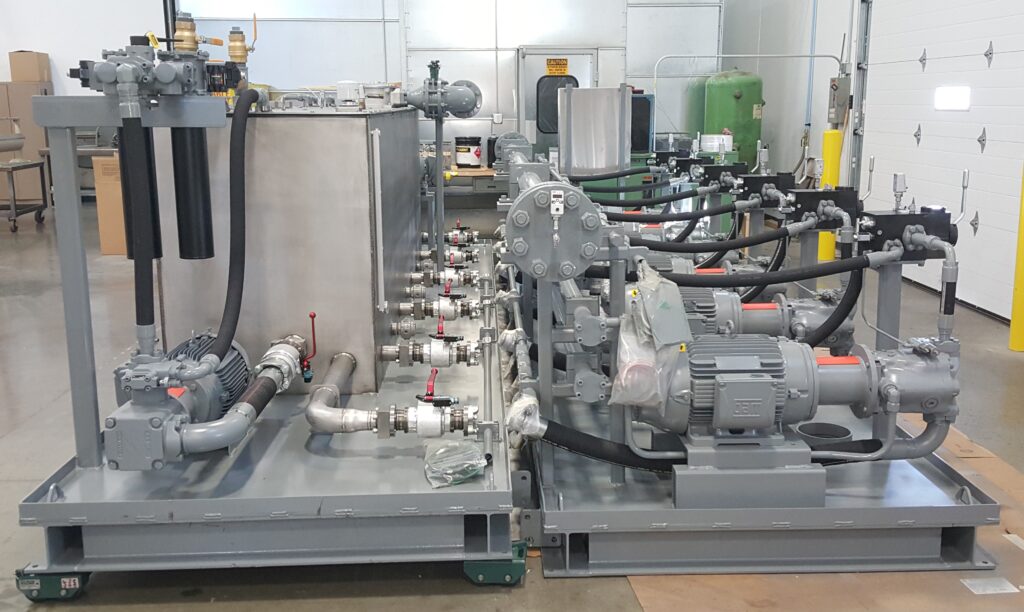

JIC-STYLE HYDRAULIC POWER UNITS

Safety

MI Fluid Power Solutions JIC-style hydraulic power units are designed for continuous use in the most demanding applications.

Performance

The location of the major components allows for easy maintenance and troubleshooting. Each unit is fully tested for performance and painted machine gloss gray.

Support

A maintenance manual, which includes a hydraulic schematic and a bill of materials (BOM), is included. Our engineers and account representatives are just a phone call away.

Hydraulic Power Unit AccessoriesHPU Combinations ChartAvailable HPU Combinations

Level / Temperature Switches	B4002N-70-C-N.O.-Assembly N.O. = Empty Tank N.C. = Temperature < 158°F Male Din Connection	B4002N-70-CR-N.C.-Assembly N.C. = Empty Tank N.O. = Temperature < 158°F Male Din Connection
Immersion Heaters	LM3-22-3/N4T4 240/3/60 VAC 0–100 °F Adjustable Thermostat	LM3-22-5/N4T4 480/3/60 VAC 0–100 °F Adjustable Thermostat
Hydraulic Oil	941907 5 Gallon Pail ISO 46 Multigrade	942125 55 Gallon Drum ISO 46 Multigrade
Replacement Filter Element	936878 10 Micron 25 P.S.I.D. Bypass
